One Way to Automatically Delete Spam on Pair Networks’ Servers

Author

Zig Zichterman

Date

December 14, 2003

Downloading spam to your email client and then deleting it is inefficient. It wastes server space, time and bandwidth. Far better is to never deliver spam to your mailbox.

Servers at Pair Networks have spamassasin, which helps identify spam. Servers at Pair Networks also have procmail, which help route and act on mail based on some filters. Using the two together to block delivery of spam requires a bit of understanding of how mail works at Pair, and a short procmail script.

The End Result

I got what I wanted:

spamassassin score 5.0+: obvious spam. Quietly delete this mail, I don't want to even know about it.
spamassassin score 2.0-5.0: probably spam, but some wanted mail. Store this in a grey area mailbox, so I can sift through it manually.
spamassassin score 2.0-: wanted mail. Send this on through to my mailbox.

I even got a few niceties:

one script needs to work for all the email accounts on my domain.
keep spam and ham mailbox files on the server so that I can use them to retrain spamassassin’s Bayesian filters.

Instructions

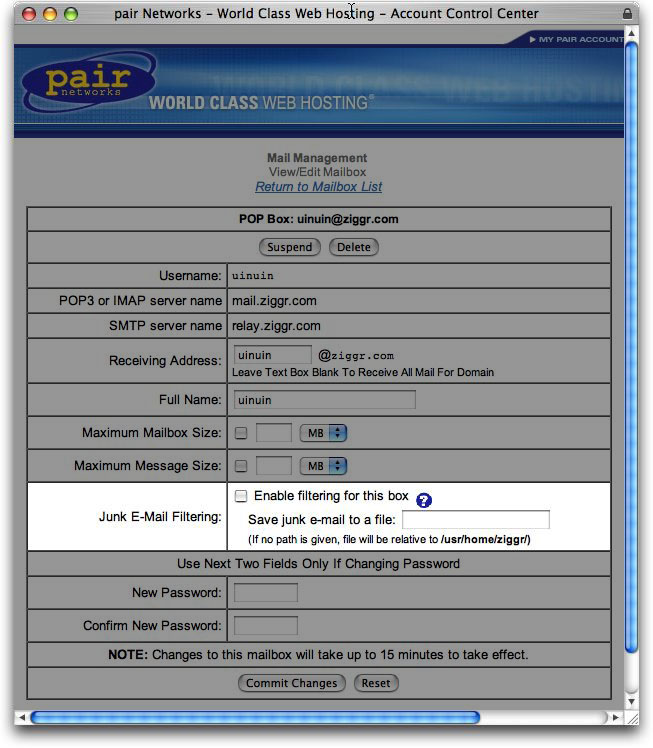

1. Turn off Junk E-Mail Filtering for the mailbox

Turn off in Junk E-Mail Filtering for the mailbox in the Pair Account Control Center for the mailbox. Yes, I said off. You will turn it on elsewhere, in a recipe.

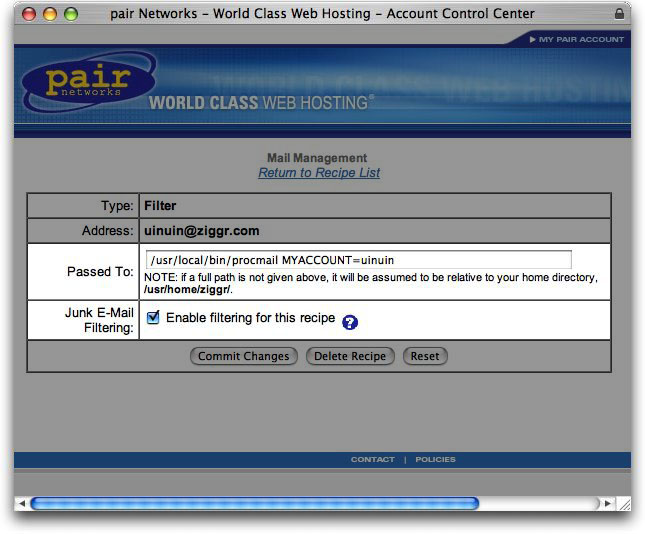

2. Create a Filter recipe for the mailbox.

Passed To: /usr/local/bin/procmail MYACCOUNT=email-account
Junk E-Mail Filtering: ON (checked)

In olden days, you had to pass to preline, which would then pass to procmail. But now the Account Control Center quietly does this preline for you behind the scenes. (You can view the Account Control Center’s output files /var/rules/pair-account-name/.qmail*, updated every 5 minutes or so:

/var/rules/ziggr/.qmail-ziggr:com-uinuin # FILTER uinuin@ziggr.com /usr/local/bin/procmail MYACCOUNT=uinuin __SPAM |/usr/local/bin/sa_client.pl -rh -rs -c1 '/var/qmail/bin/preline /usr/loc al/bin/procmail MYACCOUNT=uinuin ' # MAILBOX ziggr.com@uinuin@uinuin |/var/qmail/bin/preline -f /var/qmail/bin/bouncesaying "Message rejected by mailbox due to space constraints." /usr/local/libexec/virtual.local -f ${SENDER:-${USER:-UNKNOWN}} ziggr/ziggr.com/uinuin

MYACCOUNT=uinuin sets a variable that I use in my procmail script. This variable controls the directory where the procmail delivers mail. This lets me use the same script for all my domain’s email accounts.

The MAILBOX part is automatically generated for every mailbox, and is not part of the filter rule.

3. Initialize mailbox files

Initialize the mailbox files where your messages will eventually land. In your email client, create IMAP folders grey and ham. Although I am not positive this step is required, I fear that if you skip this step, and procmail creates these files instead of your IMAP client, IMAP will become confused. IMAP on Pair Networks servers requires some special setup stuff at the top of each IMAP mailbox file.

Once you create files in your IMAP client, you can see the mailbox files at /usr/boxes/pair-account-name/your-domain.com/$MYACCOUNT^/.imap/

If you use POP3 instead of IMAP, you can see the mailbox files at /usr/boxes/pair-account-name/your-domain.com/$MYACCOUNT

If you use POP3 for your main account (account@pair.com), your mailbox file is in your home directory, I think.

4. Write a `~/.procmailrc` script

# enable debugging logging LOGFILE=$HOME/.maillog VERBOSE=YES # prevent qmail (the program that is calling procmail # as a filter) from delivering the original mail. We'll # handle all delivery from here, thankyouverymuch. EXITCODE=99 # aim our output at the appropriate imap folder # somewhere in pair's file hierarchy. $MYACCOUNT # is set on the command line that invoked us, so # don't set it here. #MYACCOUNT=uinuin MYDIR=/usr/boxes/ziggr/ziggr.com/$MYACCOUNT^/.imap # Spam level 5.0 or greater: autodelete :0 * ^X-Spam-Level: \*\*\*\*\* /dev/null # Spam level 2.0-4.9: hold in grey area :0 * ^X-Spam-Level: \*\* $MYDIR/grey # Spam level < 2.0: it's probably real email, deliver as normal :0 $MYDIR/ham

Those first two lines (LOGFILE and VERBOSE) are just debugging hooks, you can comment them out (stick a # sign in front of them) once you are happy with everything. If you do not eventually comment out these lines, ~/.maillog will grow and grow, consuming your disk quota. While developing, I usually keep one shell window open with tail -f ~/.maillog running, so I can see as each email message comes in and gets routed.

EXITCODE=99 tells qmail that we are going to take care of delivering each message, and that qmail does not need to deliver it to the mailbox. If we did not do this, qmail would see the default return code 0 (OK) and interpret that as the filter program said the email was acceptable, so now I should deliver it. This results in duplicate copies of all mail landing in your mailbox, as well as filtered spam/ham copies landing in spam/ham mailboxes.

A Brief Pair Networks Email Tutorial

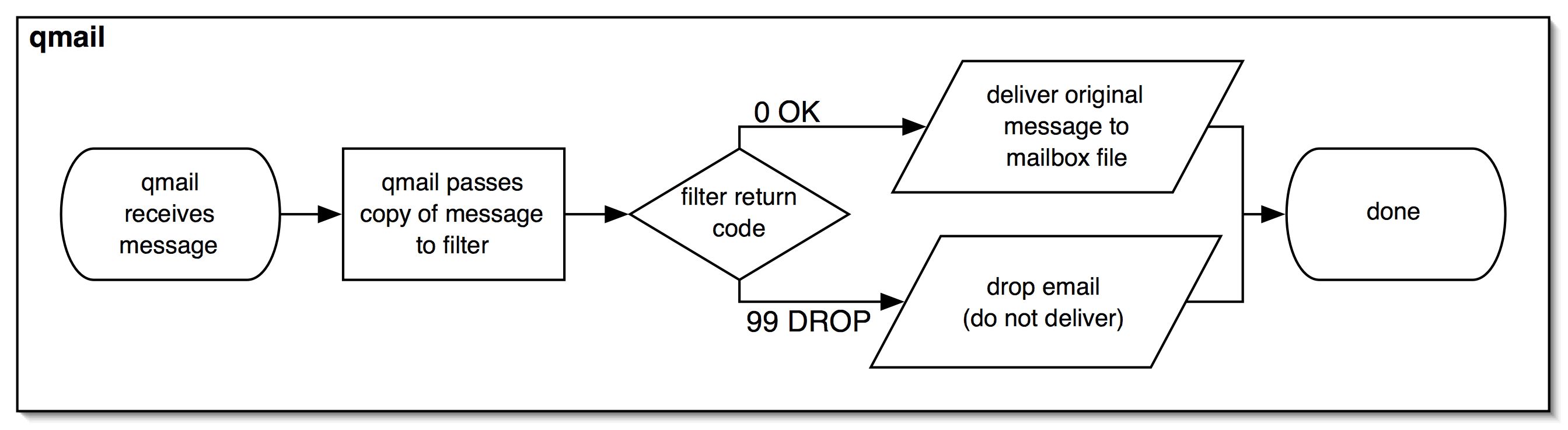

When a Pair Networks server delivers mail, it comes through qmail. qmail passes a copy of each original email message to each filter set up through the Account Control Center. If all filters return a result code of 0 OK, the message is passed through to the mailbox. If that mailbox has Junk E-Mail Filtering turned on, then it is passed through spamassassin before it goes to the mailbox. If any filter returns a result code of 99 DROP, qmail stops processing that message, qmail does not deliver the message.

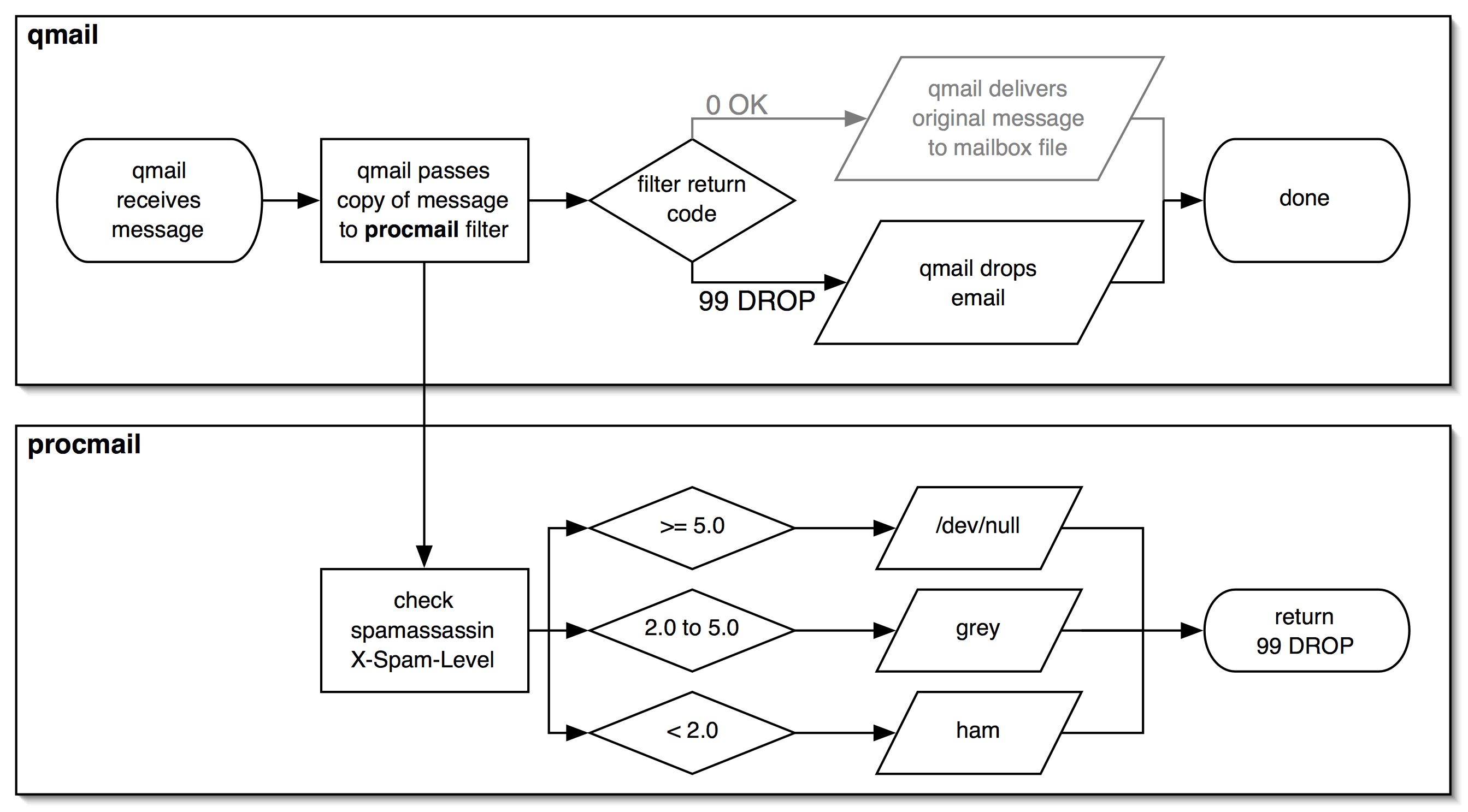

We are (ab)using qmail’s filter hook a little bit here. Rather than just return yea/nay to permit/deny delivery of a message, we want to route it to one of two mailboxes, or deny delivery. To do this, we have procmail always return a result code of 99 DROP to prevent qmail from delivering anything, and we have procmail handle all the delivery chores:

MYDIR=/usr/boxes/ziggr/ziggr.com/$MYACCOUNT^/.imap sets the parent directory that contains mailbox files grey and ham. If you use POP3 instead of IMAP, you will want to change this path, and you will need to keep separate POP3 mailboxes for grey and ham.

Next come the two filters that sort spam:

# Spam level 5.0 or greater: autodelete :0 * ^X-Spam-Level: \*\*\*\*\* /dev/null

This first filter looks for any message whose header contains a spamassassin score of 5.0 or greater (5 stars). These messages are routed to /dev/null and never heard from again.

# Spam level 2.0-4.9: hold in grey area :0 * ^X-Spam-Level: \*\* $MYDIR/grey

This second filter looks for any message whose header contains a spamassassin score of 2.0 to 4.9. These files are routed to the mailbox $MYDIR/grey, where they will sit until you manually sift through the mess.

Note that the order of filters in procmail filters is significant. If you put the 2-star filter first, it would match before the 5-star filter, and all spam would land in the grey box, no spam would be automatically deleted.

# Spam level < 2.0: it's probably real email, deliver as normal :0 $MYDIR/ham

All remaining mail is sent to a ham mailbox.

That’s It. You’re Done.

You might want to monitor ~/.maillog for a few days to see what email is being deleted and why, or tweak the number of stars in the ~/.procmailrc filters.

A Note on Bayesian Filters

Your Pair account stores its Bayesian data in /usr/boxes/your-pair-account/bayes/. This data is shared across all email accounts in your domain, so if your accounts have wildly diverging mail, you might not be able to use Bayesian filters as effectively as you would like.

You do not have to share Bayesian filter data across all your email accounts. You could set up your own spamassassin configuration, but that is a bit more work than I was willing to do.

References

pairusers.com

http://www.pairusers.com/

especially http://www.pairusers.com/?HowPairEmailReallyWorks

PairUsers.com is a wiki database capturing a lot of helpful knowledge about being a Pair Networks customer. Not an official Pair Networks project, just a bunch of users helping out other users.

man pages

man procmail

man procmailrc

man procmailex

RTFM, baby! I eventually had to break down and read the man pages on procmail. Mindlessly copying and pasting from other example scripts was not nearly as effective as spending a few minutes to learn what I was doing.

`procmail` FAQ

http://rhols66.adsl.netsonic.fi/era/procmail/mini-faq.html

Although I read the FAQ, I neither needed nor used anything I learned from the FAQ. My .procmailrc is just too simple.

Pair Support Web Pages

http://pair.com/support/knowledge_base/e-mail/junk_e-mail_filtering_overview.html

Pair Networks’ own support pages are pretty useless on this topic. Just a few light sentences telling how to turn on/off a checkbox. Nothing on combining the three tools qmail, spamassassin and procmail.

Pair Support Newsgroups

nntp://news.pair.com/pair.mail

The pair.mail newsgroup on Pair Networks’ support forums contains a vast wealth of data, dating back years.
